Nua Modular Signature Series
Our flagship residence. Thirty-nine square metres of considered architectural space, with a fully fitted bathroom, integrated wardrobe and whole-home smart system.
38.7 m²
Internal Area
CE · ISO · TÜV
Certified
30 yr
Structural Warranty
Design Philosophy
The Nua Ultra is shaped around a single principle: that a generous space, when properly considered, should feel quietly composed. A long, well-proportioned volume with full-height panoramic glazing draws the landscape inward, while a restrained palette of warm timber tones, brushed metals and soft ambient lighting establish a calm, residential atmosphere within.
The pod arrives complete — structure, services, fixtures, finishes and smart systems pre-installed, commissioned and ready for connection on site.
Principal Features
Precision-engineered structural shell with seismically resilient steel chassis and aviation-grade aluminium cladding finished in matte fluorocarbon.
Three-layer thermal envelope with high-density polyurethane insulation — year-round comfort and minimal energy demand in the Irish climate.
Full-height panoramic curtain wall with double-tempered Low-E glazing and thermal-break framing for acoustic isolation and solar control.
Fully fitted en-suite bathroom with smart bidet-toilet, overhead rain shower and multi-function bath unit — boutique hotel standard, pre-commissioned before delivery.
Integrated multi-layer wardrobe, pre-installed entrance staircase and fully commissioned smart system compatible with Siri and all major voice assistants.
Optional barrier-free configuration with wheelchair-accessible ramp, widened doorways, reinforced bathroom support and non-slip flooring.
Technical Specifications
Every element pre-installed and commissioned before delivery. Ready to connect on site.
| Construction & Fabric | |
| Primary frame | Seismically resilient steel structure |
| External cladding | Fluorocarbon baked-finish aviation-grade aluminium panel |
| Roof system | Fluorocarbon-coated aluminium with sealed weather membrane |
| Insulation | 50 mm high-density polyurethane board with closed-cell polyurethane foam infill |
| Glazing | Double-tempered insulated Low-E glass with thermal-break frames and integrated insect screens |
| Floor build-up | Cement-fibre subfloor with engineered waterproof composite finish |
| Interior walls | Bamboo-charcoal composite wall linings |
| Ceiling | Brushed aviation-grade aluminium panelling |
| Interior flooring | SPC stone-polymer composite |
| Entry | Weather-sealed door with integrated smart access control and external entrance staircase |
| Wardrobe | Built-in multi-layer wardrobe with concealed hardware |
| Life safety | Integrated smoke detector with continuous monitoring |
| Water services | Pre-installed antifreeze trace heating to all pipework; pre-routed conduits for water, drainage and power |
| Systems & Technology | |
| Smart control | Whole-home voice-activated system compatible with Siri and major voice assistants; central master panel and card-key access |
| Climate | Twin central inverter air conditioners (1.5 hp class) for heating and cooling |
| Ventilation | Continuous fresh-air circulation system |
| Hot water | Storage water heater serving bathroom and optional kitchen |
| Interior lighting | Recessed three-temperature LED downlights; upper and lower warm LED ambient strips with white waistline detail; warm 3000 K default |
| Bathroom lighting | Integrated ceiling light with heating, ventilation and air-warming functions |
| Exterior lighting | Concealed 4000 K LED perimeter strip and multi-colour flexible outline strip |
| Audio | Integrated in-ceiling sound system, voice-addressable |
| Window treatments | Motorised electric curtains on metal tracking with nylon pulleys; motorised exterior sunshade |
| Power | Card-activated mains supply with master isolator and surge protection |
| Switchgear | European-specification fittings throughout |
| Optional | Fitted kitchen · sideboard · electric underfloor heating · projector with motorised screen · accessibility package |
Bathroom
The Nua Ultra includes a fully fitted en-suite. All sanitaryware is pre-installed and commissioned prior to delivery — finished to a specification more commonly seen in boutique hotels.
| WC | Smart bidet-toilet with integrated controls |
| Vanity | Wash basin with single-lever mixer tap |
| Shower | Overhead rain shower with hand-held attachment |
| Bath unit | Multi-function integrated bath master with heating, ventilation and warm-air functions |
| Privacy screen | Frosted tempered glass partition |
| Accessories | Towel rail, integrated mirror and storage |

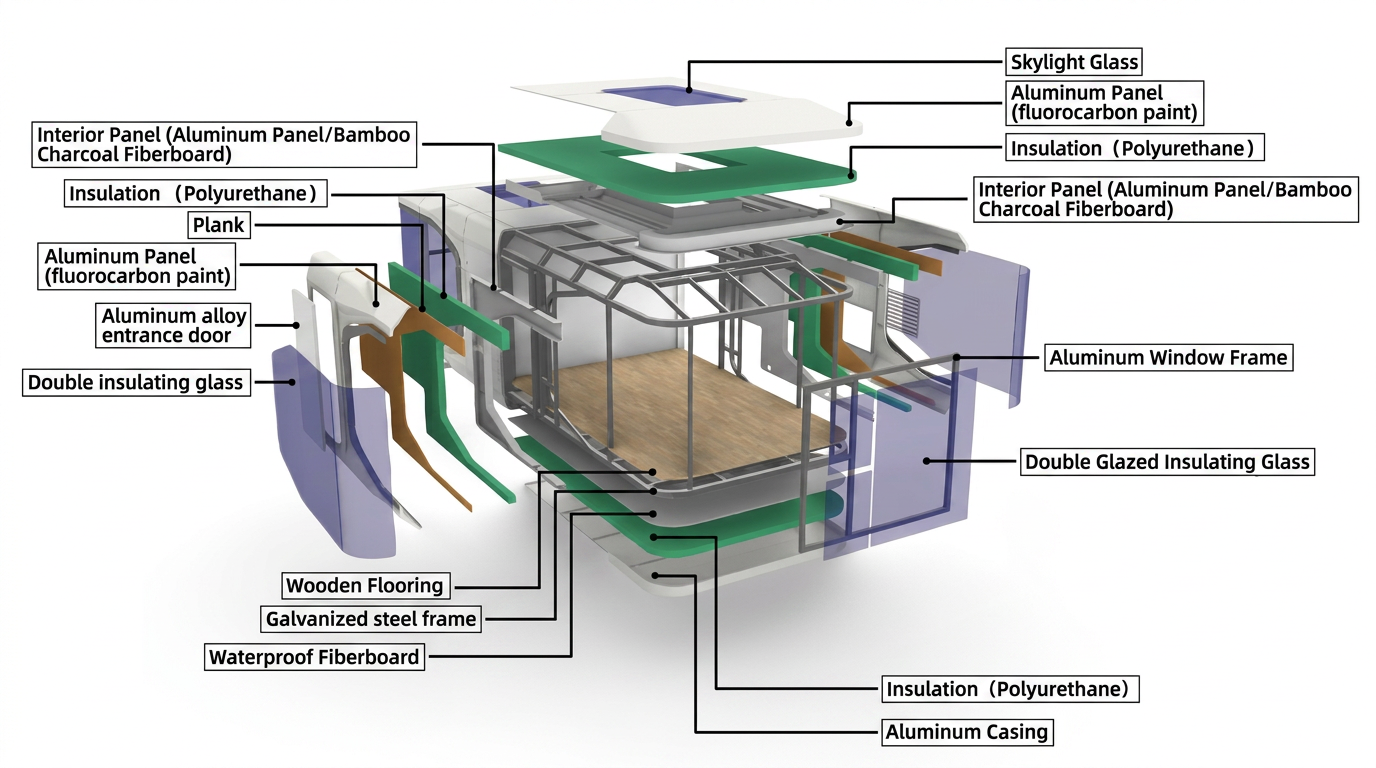

How It's Built
Every layer of the Nua Ultra is purpose-built — from the seismic-rated steel chassis to the fluorocarbon-coated aluminium skin.
Inclusive Design
The Nua Ultra is available in an optional barrier-free configuration, developed to provide a comfortable, dignified environment for occupants with limited mobility. The open-plan layout supports straightforward navigation throughout.
Wheelchair-accessible entrance ramp in place of the standard staircase, with widened interior doorways and barrier-free thresholds to all key living areas.
Reinforced support handles, roll-under sink and accessible WC layout. Non-slip flooring throughout circulation and wet areas.
Voice-activated controls for lighting, climate and security enable independent operation of all key systems — no physical reach required.
Interior Finishes
The standard Nua Ultra interior is finished to a refined, neutral palette. Bespoke configurations — from layout adjustments through to alternative finishes, joinery and furnishings — are developed in consultation with each client.
Walls
Bamboo-charcoal composite panelling for a warm, calm interior with passive air-quality benefits.
Ceiling
Brushed aviation-grade aluminium panelling, seamless and light-reflective.
Flooring
SPC stone-polymer composite inside; WPC timber-look composite to the balcony.
Lighting
Warm 3000 K interior with upper and lower LED ambient strips and white waistline accent; cooler 4000 K exterior outline.
Applications
Bespoke Commissions
Every element of the Nua Ultra — from internal layout and glazing configuration to smart-system specification and exterior palette — can be tailored to your requirements. Our design team works directly with clients, architects and operators to develop pods that complement their site, brand and end-use.
